a central New Jersey (-)skin on frame kayak in the manner of East Greenland,
![]() |

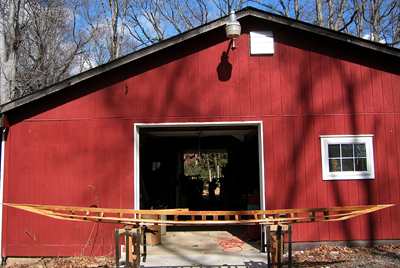

the frame and studio | ||
![]() |
18' 1.5" X 17.75"
depth to sheer, 6.75" overall depth, 8.5" 28 lbs |
||
![]() |

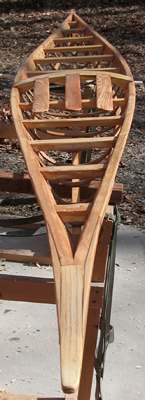

bow, glue and pegged | ||
![]() |

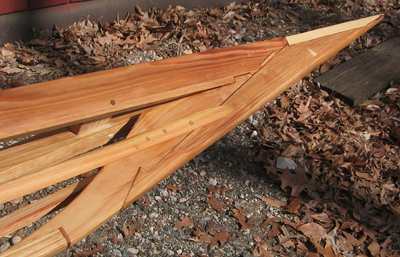

stern, cool joinery | ||
![]() |

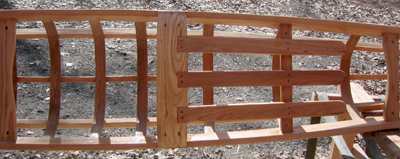

worth another look
|
||
![]() |
![]() |
||
![]() |
missing a deck beam on the fore deck due to a miscount- whoops
oak masik, ribs cypress gunwale, deckbeams, stringers, endpiece, keelson, chine substrate ash caps on endpieces, chine capping
|
||
|
|
||
|
|||
Many thanks to the R&D department including a lot of paddlers in Greenland, Richard Nonas, Harvey Golden, Peter Strand, Ray Killen, especially Phil Ellis for the initial guidance.
and the references from John Petersen, Mark Starr, and Chris Cunningham....
and the foibles and successes of the participants of the Qajaq USA forum.
stay tuned for the skinning....
